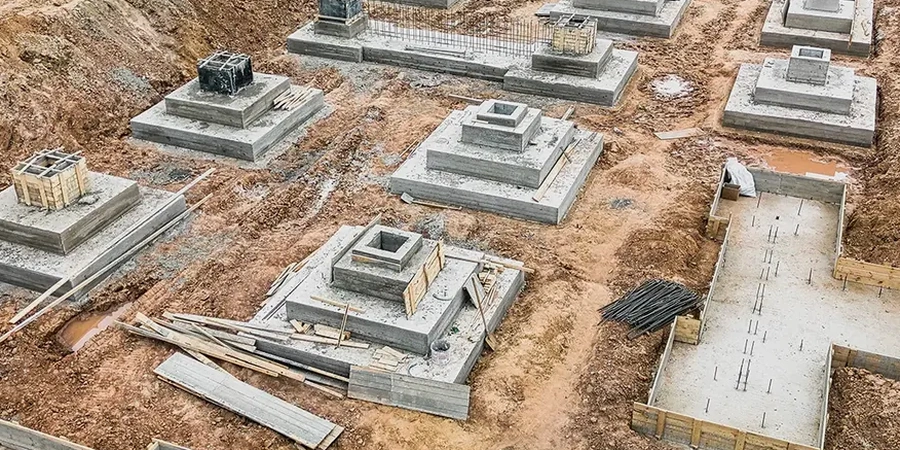

We have seen it too many times on Brantford job sites: a contractor assumes uniform bearing capacity across a site only to hit compressible organic silts at depth, triggering costly redesign weeks into the project. The Grand River watershed left a complex stratigraphy across the city, from dense Halton Till on the upper terraces to deep alluvial deposits in the lower valley near the Brant Conservation Area. A standard shallow footing design simply will not work in these conditions, and relying on presumptive bearing values from the Ontario Building Code without a proper site-specific investigation invites differential settlement problems that can surface years after occupancy. Our laboratory supports geotechnical consultants and structural engineers across Brantford with pile foundation design parameters derived from rigorous testing: we run consolidated-undrained triaxial tests on Shelby tube samples retrieved from the target strata, determine undrained shear strength for skin friction calculations in cohesive layers, and validate end-bearing estimates through SPT-N correlations calibrated to the local geology. The result is a pile design package that reflects what is actually underground, not what the textbook assumes. When working in transition zones between till and alluvium, we often supplement the investigation with a CPT test to obtain a continuous profile of tip resistance and sleeve friction, which helps identify thin compressible lenses that discrete SPT intervals might miss entirely.
A pile foundation design is only as reliable as the undrained shear strength and friction angle values that feed the capacity equations. In Brantford's layered till and alluvium, generic correlations fail where site-specific lab testing succeeds.
Process and scope
Local considerations
A six-story residential project proposed along Colborne Street West required a pile foundation after boreholes revealed 9 meters of soft, normally consolidated clay overlying a dense till stratum. The initial design used undrained shear strength values estimated from pocket penetrometer readings taken in the field, which indicated Su around 45 kPa. When our laboratory ran consolidated-undrained triaxial tests on the same Shelby tube samples, the measured Su was only 28 kPa in the middle clay layer, a reduction of nearly 38 percent. Had the design proceeded with the field estimates, the pile group would have been under-designed by a significant margin, with a calculated factor of safety dropping below 1.4 for the axial capacity. The structural engineer revised the pile length and diameter based on our lab results, extending the piles an additional 3 meters to reach the till surface. During the static load test on the first production pile, the measured settlement at twice the design load was 11 millimeters, confirming the revised parameters. This case underscores a pattern we observe repeatedly in Brantford: field index tests are useful for screening, but they do not replace laboratory measurement of strength and compressibility when deep foundations are involved. The cost of the additional lab testing represented less than 0.3 percent of the total foundation budget, while the cost of remediating a deficient pile system would have exceeded the entire geotechnical investigation budget by a factor of ten.
Reference standards
NBCC 2020 (National Building Code of Canada) provides structural design provisions for deep foundations, CSA A23.3:19 governs design of concrete structures including cast-in-place and precast concrete piles, ASTM D2850-15 outlines the unconsolidated-undrained triaxial compression test on cohesive soils, ASTM D7181-20 specifies the consolidated drained triaxial compression test for effective stress strength determination, and the CFEM (Canadian Foundation Engineering Manual) offers axial pile capacity methods and design recommendations for glacial soils.
Associated technical services
Laboratory strength and compressibility testing for axial pile capacity
We determine the undrained shear strength, effective friction angle, and consolidation parameters required for total and effective stress pile design methods. Testing includes UU and CIUC triaxial compression on undisturbed Shelby tube samples, drained triaxial on reconstituted granular specimens, and incremental oedometer consolidation tests to assess downdrag potential. All results are reported with full QA/QC documentation traceable to our ISO 17025 accredited procedures, allowing the design engineer to apply the appropriate resistance factors per NBCC and the Canadian Foundation Engineering Manual without relying on conservative default values.
Pile load test interpretation and numerical model calibration
When static or dynamic load tests are performed on prototype piles in Brantford, we back-analyze the load-settlement curves using the lab-measured stress-strain properties to calibrate t-z and q-w spring parameters for the soil layers. This allows the geotechnical designer to refine the pile group settlement predictions and optimize the pile layout before the full production phase. Our testing covers interface friction between cast-in-place concrete and the native till, a critical input when evaluating the shaft resistance of drilled shafts in the low-plasticity clays common across the Brantford area.
Typical parameters
Questions and answers
What is the typical cost range for pile foundation design testing in Brantford?
How do you determine the undrained shear strength for pile design in Brantford clays?
We retrieve undisturbed Shelby tube samples from the clay layers encountered in the borehole and perform unconsolidated-undrained (UU) triaxial tests according to ASTM D2850. For sensitive clays where sample disturbance is a concern, we also run consolidated-undrained triaxial tests with pore pressure measurement (CIUC) to establish the effective stress strength envelope, which provides a more reliable basis for long-term pile capacity calculations in the Brantford till deposits.
What is the difference between end-bearing and friction piles, and which is more common in Brantford?
End-bearing piles transfer load primarily through the tip onto a firm stratum such as dense till or bedrock, while friction piles develop capacity along the shaft through adhesion and friction with the surrounding soil. In Brantford, many piles function in a combined mode: the upper portion mobilizes skin friction in the softer alluvial clays, and the tip gains end bearing when it reaches the underlying Halton Till. The dominant mechanism depends on the pile length and the depth to competent material, both of which our laboratory testing helps quantify by providing accurate strength profiles for each layer.
How does seasonal groundwater variation in Brantford affect pile foundation design?
The Grand River watershed influences groundwater levels across Brantford, with fluctuations of two meters or more between spring recharge and late summer low-water periods. For pile design, this affects the effective stress calculation in the soil because the buoyant unit weight changes with the water table position. Our laboratory measures the saturated and dry unit weights of each soil layer and provides the buoyant weight correction so the engineer can model both the high and low groundwater scenarios and design for the most critical condition.
Can you provide parameters for t-z curve analysis from laboratory tests?
Yes, we derive t-z and q-w spring parameters directly from the stress-strain curves obtained during triaxial compression testing. By measuring the axial strain at various percentages of the peak deviator stress, we can define the shaft load-transfer response for each soil layer. These parameters are then calibrated against any available pile load test data from the Brantford site, allowing the geotechnical designer to perform settlement analysis of the pile group with a high degree of confidence.
